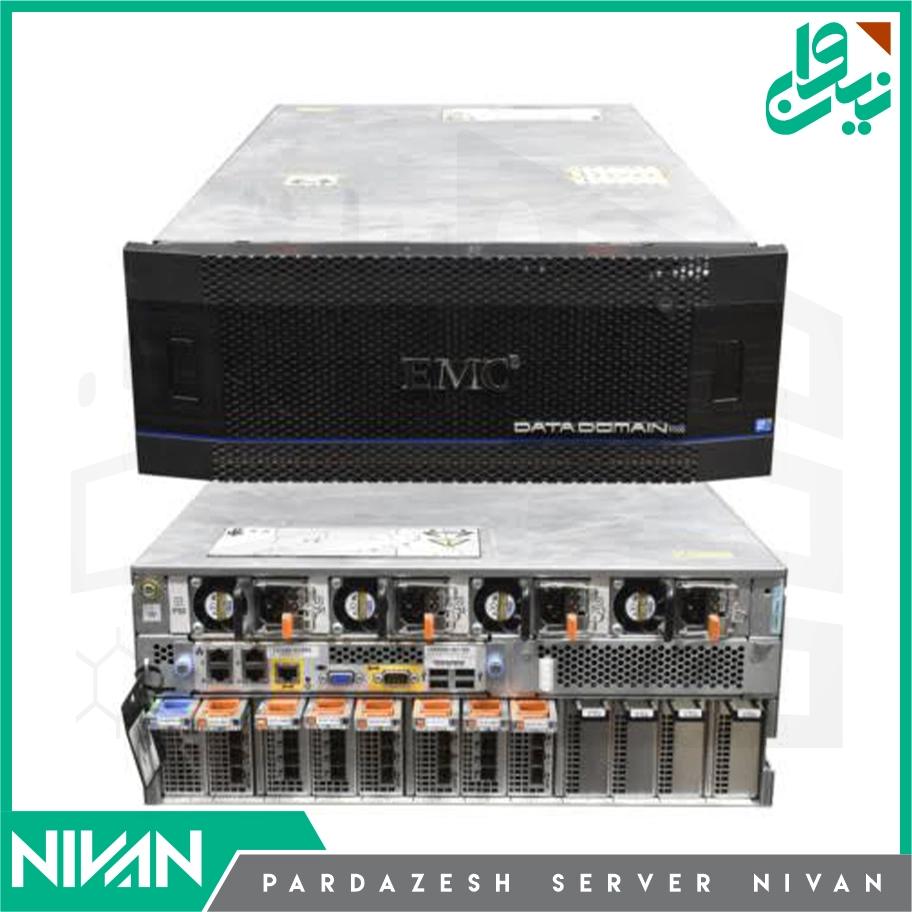

DELL EMC Data Domain DD9500

توضیحات

DELL EMC Data Domain DD9500

محصولات خانواده Data Domain با استفاده از PowerProtect DD Virtual Edition (DDVE) برای محیط داخل  طراحی شده است که برای حذف داده های تکراری و جلوگیری می کند . دیتا دامین DD9500 در دو مدل Base configuration ، Expanded configuration عرضه می شود .

مشخصات فنی دیتا دامین DD9500 :

Rack height : 4U

Rack mounting : Rack mount kit included with each system. Adjustable between 24 – 36 in. (60.9–76.2 cm)

Power : 4 hot-swappable power units, 2 pairs of 1 +1 redundant

Voltage : 200–240 V~.Frequency: 50 Hz to 60 Hz

Processor : 4 Intel EX processors

NVRAM : One 8-GB NVRAM module for data integrity during a power outage

Fans : 8 hot-swappable fans, redundant

Internal drives : 4 x 400 GB (base 10) hot-swappable solid state drives (SSD)

I/O module slots : 11 I/O module (Fibre Channel, Ethernet, and SAS) slots . Replaceable I/O modules are not hot-swappable. See I/ O module slot assignments on page 245

High availability support : Yes

HA private interconnect : 4 10 GbE optical ports

External SSD shelf : Optional 1 x 8 drive SSD shelf

• Base configuration

Memory : 32 x 8 GB DIMM (256 GB)

Supported capacity Non-extended retention : 540 TB

Supported capacity DD Cloud Tier : ندارد

Supported capacity Extended retention : ندارد

• Expanded configuration

Memory : 32 x 8 GB DIMM + 16 x 16 GB DIMM (512 GB)

Supported capacity Non-extended retention : 1080 TB

Supported capacity DD Cloud Tier : 2160 TBa

Supported capacity Extended retention : 1080 TBb
